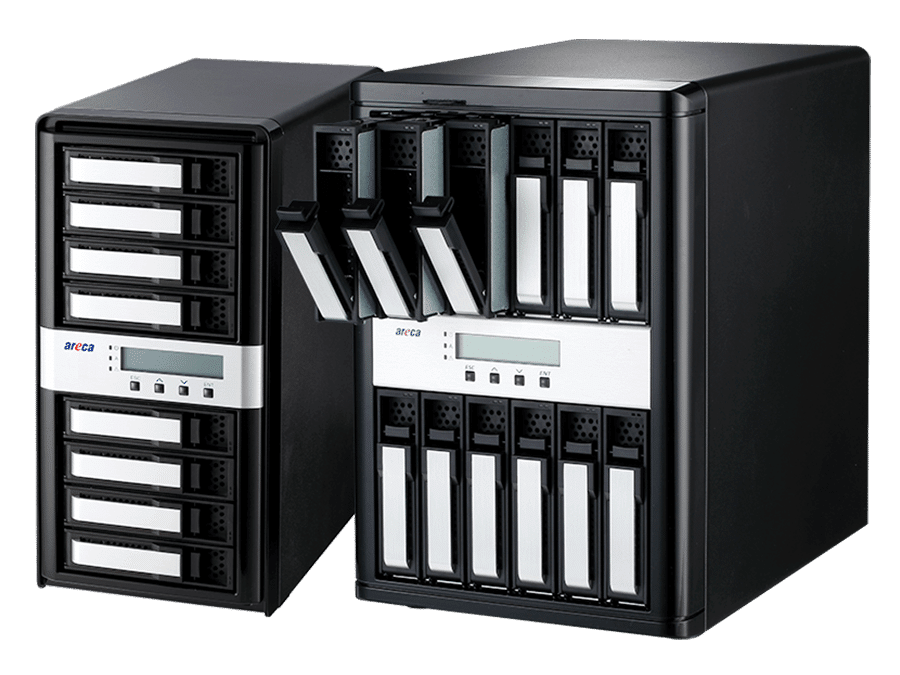

ARC-8050T3U series
Starting Price:
The ARC-8050T3U series are equipped with dual Thunderbolt 3 ports for connecting to any Thunderbolt 3-enabled host and offers an additional Thunderbolt 3 port for daisy-chaining other peripherals, while also supplying power for quick notebook charging. The ARC-8050T3U also sports a full sized DisplayPort 1.4 video output on its rear, allowing for a quick and easy 8K 30Hz display setup.
If an ARC-8050T3U is plugged in a USB-C computer port, a USB device controller inside the ARC-8050T3U enabled system is activated, and the inside USB device controller drives USB (2.0, USB 3.2 Gen 1, or USB 3.2 Gen 2) signals to the USB-C port. In this condition, the ARC-8050T3U Thunderbolt 3 port behaves exactly like a typical USB-C 3.2 Gen 2-enabled connector.
If an ARC-8050T3U is plugged in a USB-C computer port, a USB device controller inside the ARC-8050T3U enabled system is activated, and the inside USB device controller drives USB (2.0, USB 3.2 Gen 1, or USB 3.2 Gen 2) signals to the USB-C port. In this condition, the ARC-8050T3U Thunderbolt 3 port behaves exactly like a typical USB-C 3.2 Gen 2-enabled connector.
This is an Alert
Note:
Adding color to TALINO Chassis will cost an extra $400 and have a one-month additional lead time. Exact color may vary.
Adding color to TALINO Chassis will cost an extra $400 and have a one-month additional lead time. Exact color may vary.
Online Purchases and Pricing are for the US only. For International Purchases and Support Please Contact Us. Image represented in photograph is stock; customizations will render each system unique.
PRODUCT DESCRIPTION
Highlights:
- High performance 40Gbps Thunderbolt 3 interface
- Support simultaneous 4K in/output workflow
- Support a USB-C computer port
- Fully support Apple M1 silicon on Macs
- Configuration by the Thunderbolt/LAN port/LCD
- 1m 40Gb active Thunderbolt 3 (USB-C) cable included
- Advanced configuration for video optimized performance setting
- Delivers enterprise-class data protection and security
- Controller-level hardware encryption (not available for 4-Bay)
- Intelligent power On/Off function for data integrity
- SED (self-encrypting drives) function support
- Hard drive firmware update all at once
- 8050T3U-6MN
- 6 Bay 2.5" NVMe Thunderbolt 3 RAID tower N/A

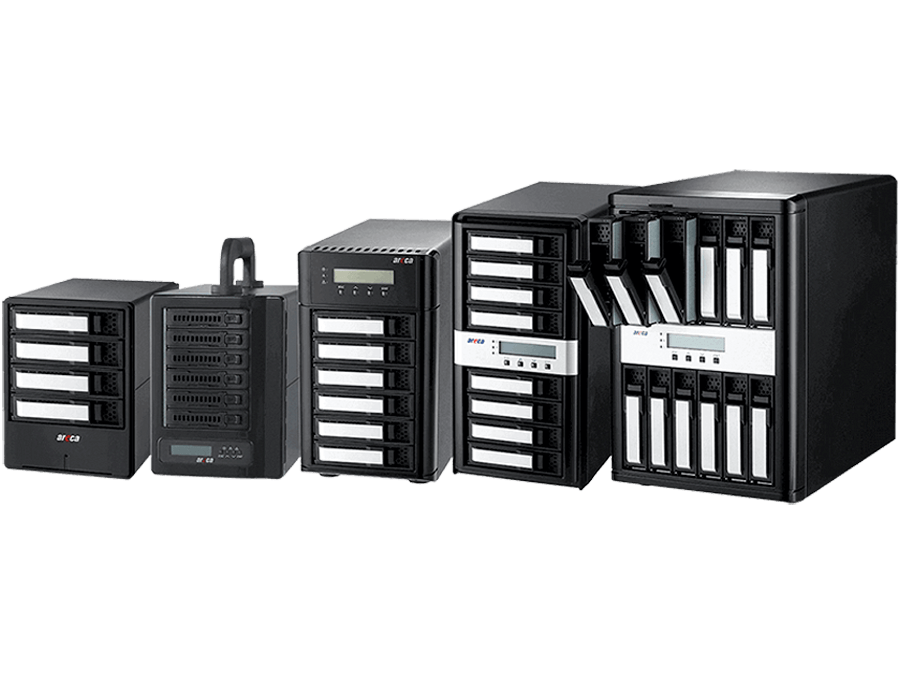

PRODUCT COMPARISON
| ARC-8050T3U-4 ARC-8050T3U-4A | ARC-8050T3U-6M | ARC-8050T3U-6 | ARC-8050T3U-8 | ARC-8050T3U-12 ARC-8050T3U-12E | ||
| Form Factor | Desktop 4-Bay | Desktop 6-Bay | Desktop 8-Bay | Desktop 12-Bay | ||
| Connection | Thunderbolt 3 x 2 / Display Port x 1 | |||||
| Disk Port | 4 x 6Gb/s SAS/SATA | 6 x / 8 x / 12 x 12Gb/s SAS or 6Gb/s SATA | ||||
| I/O Processor | One Core 800 MHz SAS ROC | T3U-6M / 6 / 8 / 12 => Dual Core 1.2 GHz SAS ROC T3U-12E => Tri-Mode Dual Core ARM A15 1.6GHz ROC | ||||
| On-Board Cache | 1GB DDR3-800 | T3U-6M/6/8/12 => 2GB DDR3-1866 SDRAM T3U-12E => 8GB DDR4-2666 SDRAM | ||||
| Expansion Support | N/A | SFF-8644 (2-lanes) | N/A | SFF-8644 (4-lanes) | ||
| Cooling Fan | 1 x 2700rpm | 2 x 2700rpm | ||||
| Power Supply | 150W | 180W | 300W | 400W | ||
| Physical Dimensions (H x W x D) | 4.84 x 6.51 x 9.11 in (123 x 165.6 x 232 mm) | 4.84 x 8.45 x 9.11 in (146 x 255 x 290 mm) | 5.7 x 11.8 x 11.4 in (146 x 302 x 290 mm) | 8.1 x 12.2 x 11.4 in (206 x 310 x 290 mm) | ||
| Weight | 8.0 lbs / 3.6 Kg | 13.2 lbs / 6.0 Kg | 14.9 lbs / 6.8 Kg | 20.8 lbs / 9.5 Kg | ||
| XLR | N/A | 4-pin XLR | N/A | |||
| RAID Level | 0, 1, 10, 3, 5, 6, Single Disk, JBOD | 0, 1, 10, 3, 5, 6, 30, 50, 60, Single Disk, JBOD | ||||
| OS Support | Thunderbolt 3: macOS 10.12 or later & Windows 8/10 or later ; USB: OS Independent | |||||
| Computer Port Type | Thunderbolt™ 3 & USB 3.2 Gen 2 | |||||
