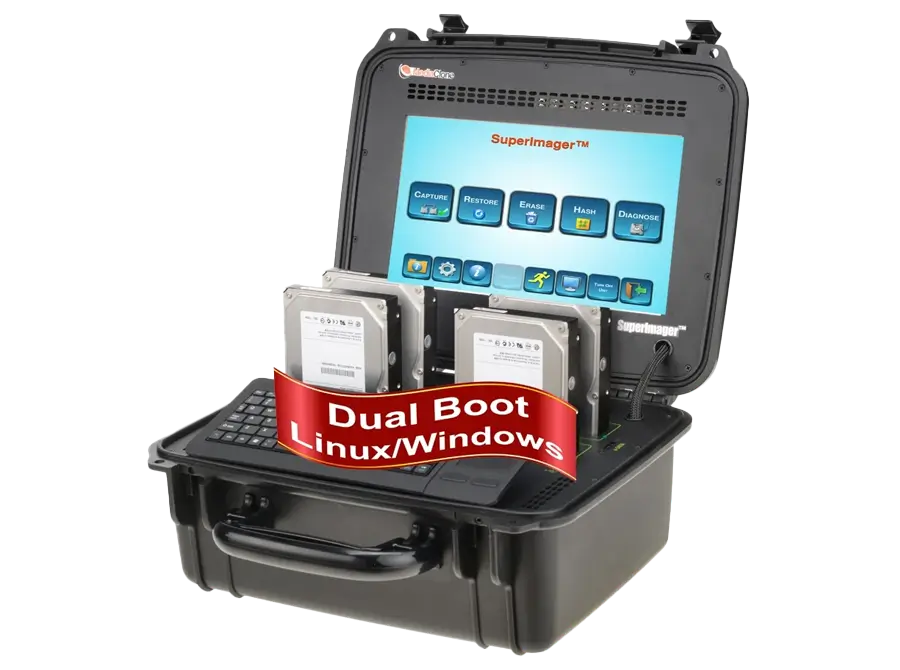

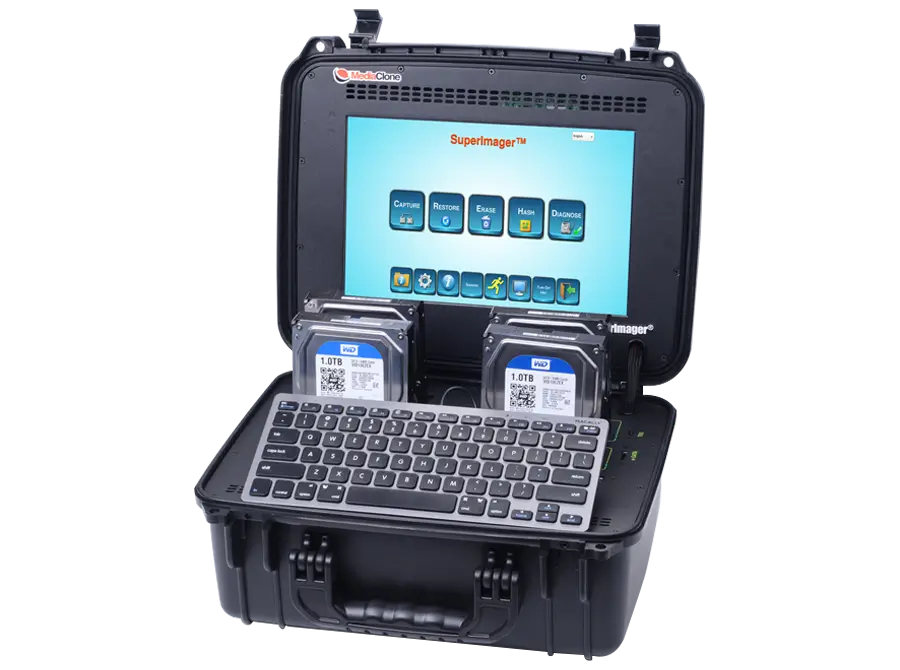

SuperImager Plus 12 “Rugged Forensic Portable Field Unit with TB3.0 Ports-Linux Forensic Imager
SuperImager Plus 12″ Rugged Forensic Field unit with 4 SAS/SATA-3, Thunderbolt 3.0 and 4 USB3.1 ports. It is a top performance field computer Forensic Imaging tool and complete computer forensic investigation platform. The user can run multiple parallel data capture from many data storage and devices, perform calculation of 3 HASH value and encryption on the fly. The unit can be used to perform cellphone extraction and a full forensic analysis, and more.
Online Purchases and Pricing are for the US only. For International Purchases and Support Please Contact Us. Image represented in photograph is stock; customizations will render each system unique.
PRODUCT DESCRIPTION
Hardware specifications:
- CPU: i7 Quad Core, Latest Generation
- RAM: 16GB DDR4 internal memory
- Storage: 250GB SSD SATA HDD
- Storage controller: PCI Express 3.0 SAS/SATA controller supporting 6Gbit/s SAS/SATA interface speeds with maximum data rate of 37GB/min

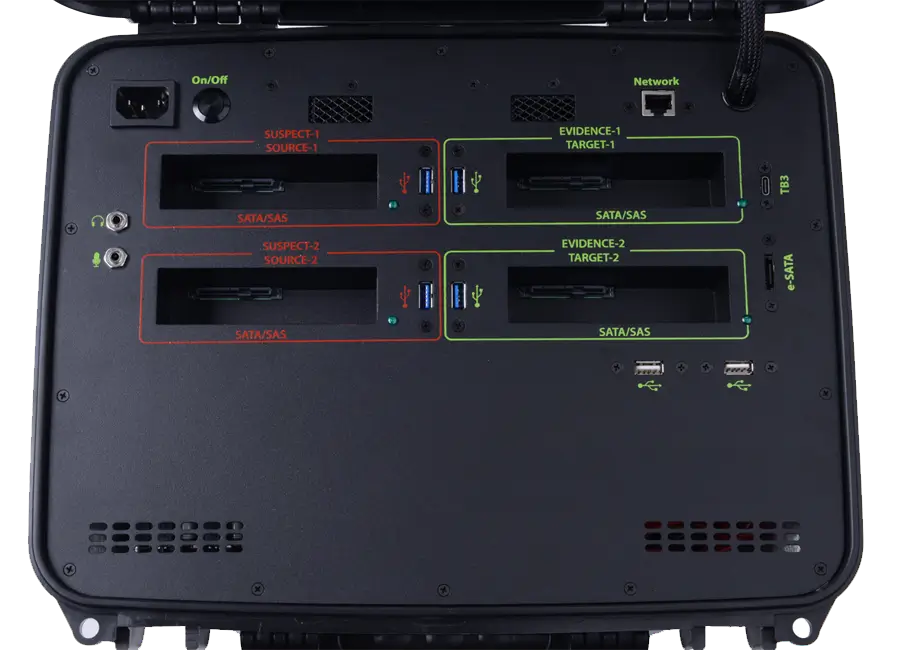

Source/Target ports:
- Four SAS/SATA power and data combo ports (Two “Suspect” and Two “Evidence”)
- Two USB3.0 ports (“Suspect 1”, “Evidence 1”)
- Two USB3.0 ports (“Suspect 2”, “Evidence 2”)
Top Panel Add-on Ports:
- One 1Gigabit Ethernet port for network connectivity and remote data acquisition from an unopened PC/Laptop
- 2 Audio 3.5mm connectors to support the plug in of speakers, ear phones and/or microphones
- Two USB2.0 ports for generic use, like Codemeter dongle
- Thunderbolt 3.0 port for capturer External stoage, or connect to 10Giga network, or use it as HDMI port with supplied adapter
- e-SATA 6Gbit/s port for external storage (“hot” plug) for DVD, or as a normal Evidence Port
Power Characteristics:
- Supplied universal auto switching 250W UL/CE/PSE approved internal power supply
- Input voltage: 100-240V/50-60Hz
- Power consumption excluding external drives: 84W
Operating Environment:
- 5°C – 55°C (40°F-130°F), relative humidity: 20-60% non-condensing
Mechanical Characteristics:
- SE-520 hard case with internal metal chassis
- Unit Net Weight: 19.00 lbs.
- Unit Dimensions:15.00″ x 12.13″ x 6.90″
Shipping box dimension: 20″ x 20″ x 15″ - Shipping Weight: 24 lbs
Includes accessory bag to store all adapters, cables and the keyboard
