SuperWiper Desktop 12 NVMe ports PCIE4.0 Multiple NVMe SSD Data Erase Unit
Price:
$10,000.00
SuperWiper Desktop 12 NVMe PCIe ports unit is a standalone, industrial, dedicated hardware for erasing data from multiple NVMe SSD. The unit is extremely fast and secure, built with the latest hardware technology to achieve the most efficient drive erases, performing at a very high speed, with the ability to erase multiple SSD independly and at the same time . The unit supports many erase protocols and different digital storage devices such as NVMe SSD and USB3.2. The user can erase 12 NVMe SSD and 10 USB3.2 storage devices at the same time. Speed or erase can reach 333GB/min (480GB/min is the max bandtwidth for one NVMe port with 4 lanes of PCIe4.0). Solution is very economic and does not use any erase licensing scheme.

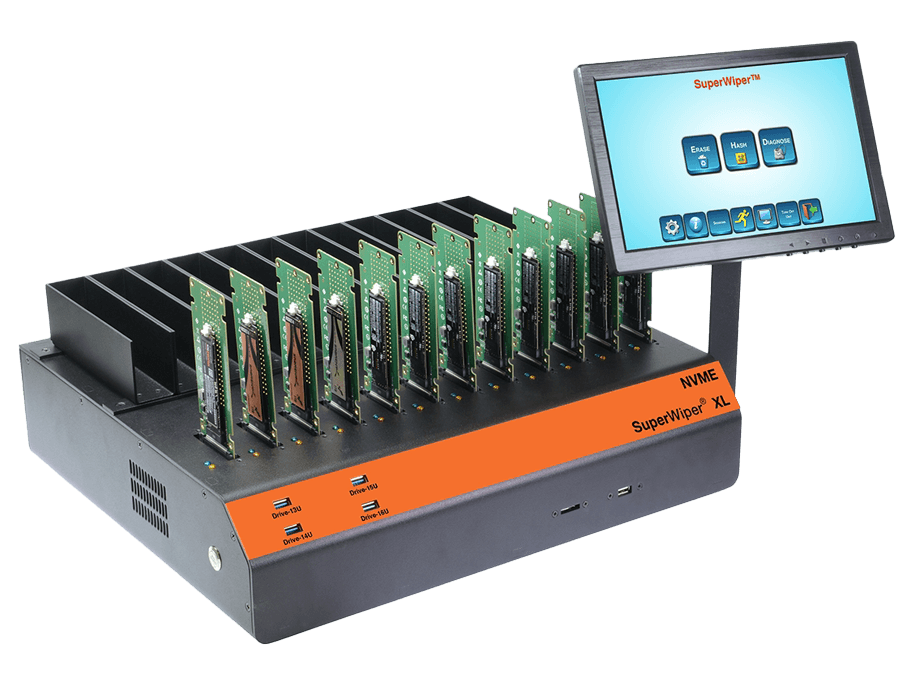

Image represented in photograph is a stock image; customizations will render each system unique.
PRODUCT DESCRIPTION
The SuperWiper® Desktop 12 NVMe PCIe4.0 ports drive eraser unit is a standalone, industrial durable built, dedicated hardware to simultaneously erase data from 12 NVMe SSD in a very efficient way. The unit supports NVMe SSD and USB Flash drives. The unit is extremely fast and the speed of run on NVMe SSD can reach.
- Verify 333GB/min.
- Erase + Verify 227GB/min (one pass erase and one pass verify).
- HASH SHA-1 165GB/min.
The unit built with 12 U.2 NVMe ports, 10 USB3.2 ports, 2 Thunderbolt 4.0 ports, eSATA port. Supporting both U.2 and M.2 NVMe. Each of the unit’s NVMe ports has a dedicate 4 lanes of PCIe4.0 with max bandwidth of 480GB/min.
The built-in SuperWiper’s erase application is easy to use with touchscreen icons and supports many erase protocols, such as:
- DoD 5220-22M (ECE) erase specification (with 7 writing passes and one verification pass).
- DoD Lite 5220-22M (E) erase specification (with 3 writing passes and one verification pass).
- Security Erase (for SATA drives).Enhanced Security Erase
- (for SATA drives).
- Sanitize (3 types to be used with SAS SSD).
- “User” Defined Erase Settings
- NVMe-Format/NVMe Secure Erase (for NVMe SSD).
Main Hardware Features:
- Form Factor: Desktop style.
- CPU: i7 Latest generation.
- Display: 10″ touchscreen, color LCD display.
- Hardware: Very high-quality, high performing components; some with military specifications.
- OS: Linux Ubuntu 64 bit.
- Security: Linux OS (Linux is less targeted by malware).
- Dedicated Secure Unit: Erases and Formats storage devices (HDD, SSD, USB storage devices, and Multi Media Cards).
Hardware Specifications:
- Storage controller: 12 Ports NVMe Storage Controller (PCIe4.0)supporting NVMe interfaces with a maximum data rate of 480GB/min per port.
- 48bit LBA Addressing: Supports drives with sizes up to 256TB.
Hardware Supports:
- Supports Storage Protocols and Interfaces: NVMe, SATA, e-SATA enclosures, IDE, USB2.0, USB3.0, USB3.0, MMC, and M.2 (SATA).
- Supports Form Factors: 3.5″, 2.5″, ZIF, 1.8″, Micro-SATA, Mini-SATA, and M.2 storage devices.
- Erase Multi-Media Cards: Supports SD/CF/Memory Stick/microSD with the use of a Multi-Media Card reader via a USB port.
- Main Native Ports: 12 U.2 NVMe ports (supplied with 12 U.2 to M.2 Extension cables and 12 U.2 to M.2 Adapters), one e-SATA, and 10 USB3.2
- Power Characteristics:A universal auto switching(110/220v) 750W UL/CE/PSE power supply.
- Operating Environment:
5°C – 55°C (40°F-130°F), relative humidity: 20-60% non-condensing. - Mechanical Characteristics:
- The Unit Dimensions: 18.0″ x 15.0″ x 4.0″ inch. The user will have to attach the display pad to the main unit. The 8-channel open tray dimensions: 11″ x 6″ x 2″
- The Unit Net Weight: 35.00 LBS.
- The Shipping Dimensions: 24″ x 20″ x 16″ inch & Box Weight: 36 lbs.
- Supplied: 12 M.2 NVMe to U.2 SFF-8638 adapters and 12 SFF-8639 U.2 male to female extension cables.
- Optional Items:
- NVMe U.2 to PCIe adapter
- USB memory card reader (MMC)
- USB3.0 to e-SATA adapter for eSATA enclosures
- IDE+ 2.5″ to SATA kit (One Channel)
- Micro-SATA adapter
- Mini-SATA adapter
- M.2 NGFF to SATA Adapter
- USB3.0 to SATA 4 Channel Kit convert 4 USB3.0 ports to 4 SATA ports at high speed (Up to 20GB/min). The kit includes 4 USB3.0 to SATA hard drive adapters and 1 PS to power 4 hard disk drives
