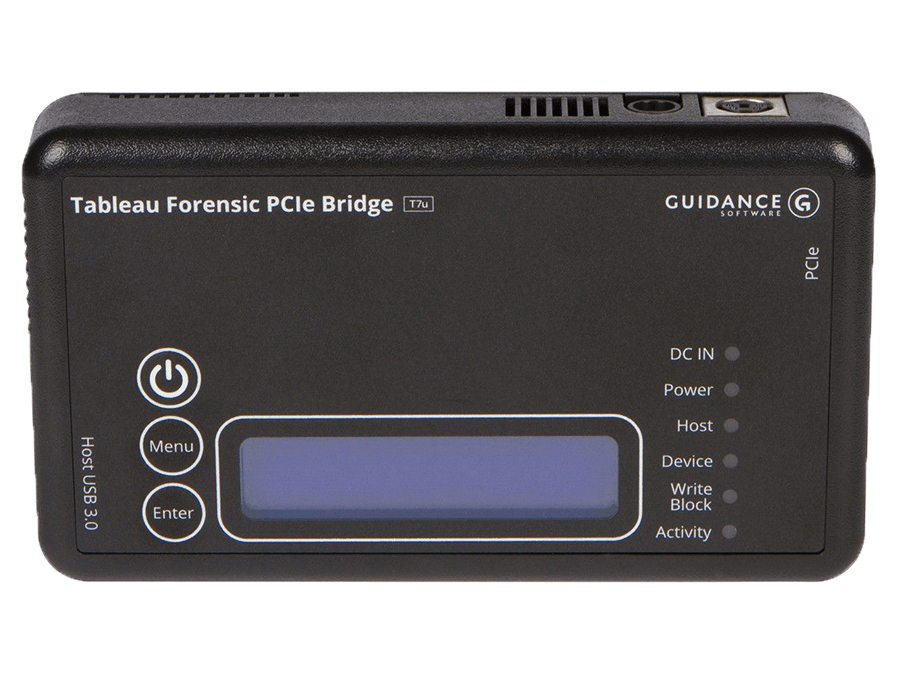

T7u Tableau Forensic PCIe Bridge Kit Bundle

Price:

$794.00

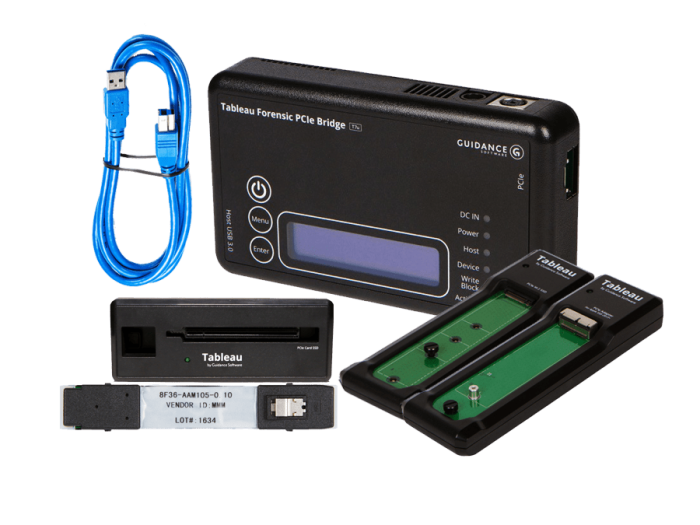

Bundle inclusions:

  • TP2 power supply
  • The TC-USB3 Cable, which is the USB 3.0-A (9-pin) to USB 3.0-B (9-pin). 6 ft.
  • TDA7-1 Adapter is the PCIe Card SSD Adapter
  • TDA7-2 Adapter is the PCIe M.2 SSD Adapter
  • TDA7-3 Adapter is PCIe Adapter for Apple SSD 2013 and later
  • TDA7-4 Adapter is the PCIe U.2 SSD Adapter
  • TDA7-7 Adapter is the PCIe Adapter for Apple SSD 2016
  • TC-PCIE-4 Cable is the PCIe adapter cable (4 inch)
  • TB7 is the bag

PRODUCT DESCRIPTION

Connectors: Host (Left) Side
USB 3.0One USB 3.0 Standard-B connector
Connectors: Device (Right) Side
PCIeOne Proprietary PCIe connector
Connectors: Top Side
DC InputOne 5-pin Mini-DIN connector for the Tableau TP2 power supply, and one bayonet connector for the Tableau TP5 power supply
Switches
DIP SwitchThe 4-position DIP switch configures user-selectable options that are not required for normal operation. See the T7u Quick Reference Guide for more information
User Interface
LCD2 Row x 16 Column monochrome LCD character display with LED backlight
ButtonsThree buttons: “Menu” and “Enter” buttons for navigation, plus an “On/Off” button to control the power
Other Features
Status LEDsSix LEDs: DC IN, Power, Host (detect), Device (detect), Wrt Block (enabled), Activity
Compatibility
PCIe DevicePCIe devices that comply with the AHCI standard or NVMe 1.0 specification are supported by the TDA7 family of PCIe adapters
Host OSMicrosoft Windows version 7, 8, 10
Macintosh OS X
Most modern Linux distributions (Note: Linux distributions have varying levels and quality of support for USB 3.0)
Physical / Environmental
Power12 watts typical operating (not including PCIe device or TDA7-family adapter)
Supply Voltage (DC IN)+5V @ 0.35A (max), +12V @ 0.25A (max) when powered using a Tableau TP2 power supply
+12V @ 0.4A (max) when using a Tableau TP5 power supply
Output Voltage (DC OUT)+12VDC @ 2.0A (max)
Dimensions5.625 in. (L) x 3.25 in. (W) x 1.125 in. (H)
Weight7.2oz (204g)
Operating Temperature Range0 to 55 degrees C (no airflow)
Storage Temperature Range-20 to 60 degrees C
Relative HumidityUp to 90% (non-condensing)
