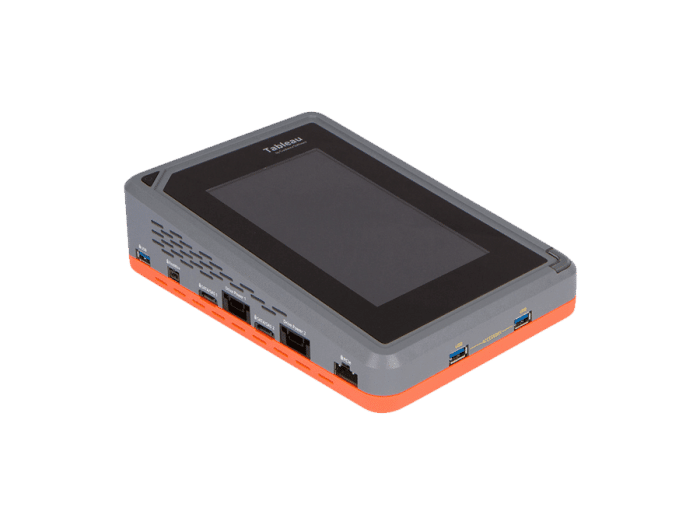

Tableau Forensic Imager TX1 Kit
Price:
$3,794.00
Please note that there is a potential lead time of at least 2 weeks (14 days) for OpenText items. We appreciate your patience and understanding.
CUSTOM-BUILT FOR DIGITAL INVESTIGATIONS
In the lab, or in the field, the NEW Tableau Forensic Imager (TX1) acquires more data, faster, from more media types, without ever sacrificing ease-of-use or portability.
Successor to the Tableau TD3 and redesigned from the circuit board up, the TX1 is built on a custom Linux kernel, making it lean and powerful. Every component is hand-selected and tested to guarantee reliability and performance when conducting forensic imaging operations.
Kit Includes: TX1, TX1-S1, TP6, TC4-8-R3 (x4), TC-PCIe-8, TPKG-VCT-5, TPKG-CLOTH and Quick Ref Guide.
Compatible with: TKDA7-5, TX1-S1,TC4-8-R3
Note
Online Purchases and Pricing are for the US only.
For International Purchases and Support Please Contact Us.
For International Purchases and Support Please Contact Us.
PRODUCT DESCRIPTION
Connectors: Source Side | Â |
|---|---|
| SATA/SAS | Two SATA/SAS (6 Gbps) Signal Connectors |
| USB | One USB 3.1 Gen 1 (5 Gbps) Standard-A Connector |
| FireWire | One 1394b “FireWire800” Signal Connector |
| PCIe | One PCIe (10 Gbps) Adapter Connector |
| Drive Power | Two 3M-style 4-pin Power Connectors for the SATA/SAS Drive Power |
Connectors: Destination Side | Â |
| SATA/SAS | Two SATA/SAS (6 Gbps) Signal Connectors |
| USB | One USB 3.1 Gen 1 (5 Gbps) Standard-A Connector |
| TX1-S1 | One TX1-S1 (Two SATA/SAS 6 Gbps) Signal Connector |
| Drive Power | Two 3M-style 4-pin Power Connectors for the SATA/SAS Drive Power |
Connectors: Misc | Â |
| Ethernet | One 10 Gbps Ethernet Connection (Source or Destination) |
| USB | Two USB 3.1 Gen 1 (5 Gbps) Standard-A Connectors |
| SD Card | One SD Card Connector for Device Firmware |
| DC Input | One Barrel Connector for use with Tableau TP6 Power Supply |
User Interface | Â |
| LCD | 7.0 in. Graphic LCD (600 x 1024 Resolution) with Capacitive Touch-screen |
| Power Button | One Power On/Off Button |
Status LEDs | Â |
| Power LED | White LED Indicating TX1 is Powered On |
| Status LED | Multi-color LED indicating TX1 Job Status |
| Speaker | Audio Tones Indicate Job Completion and Errors |
Physical / Environmental | Â |
| Power | 55 Watts Typical Operating (Not Including Drive Power) |
| DC Input | 24 VDC (Nominal) |
| DC Output (per drive) | +5/12V @2A (Spin-up) |
| Â | +5/12V @1A (Continuous) |
| Dimensions | 9.5 in. (L) x 6.5 in. (W) x 2.625 in. (H) |
| Weight | 35 oz (980 g) |
| Storage Temperature Range | -20 to 70 Degrees C |
| Operating Temperature Range | 0 to 40 Degrees C Ambient (Room Temperature) |
| Relative Humidity | Up to 90% (Non-condensing) |
