Tableau Forensic Universal Bridge T356789iu

Price:

$1,264.00

SUMMARY

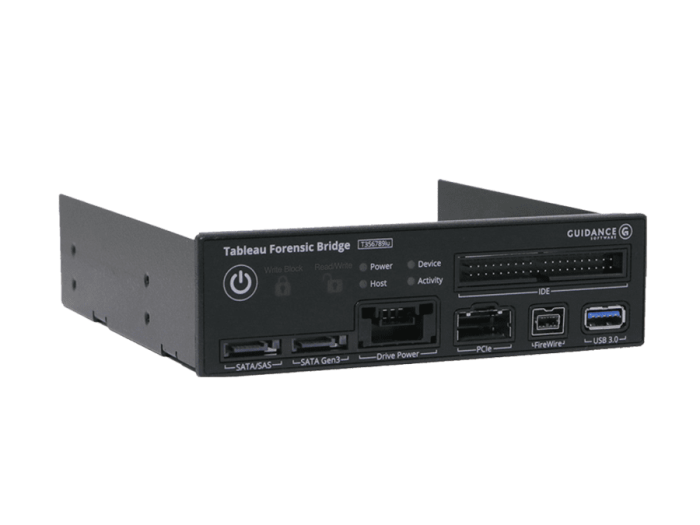

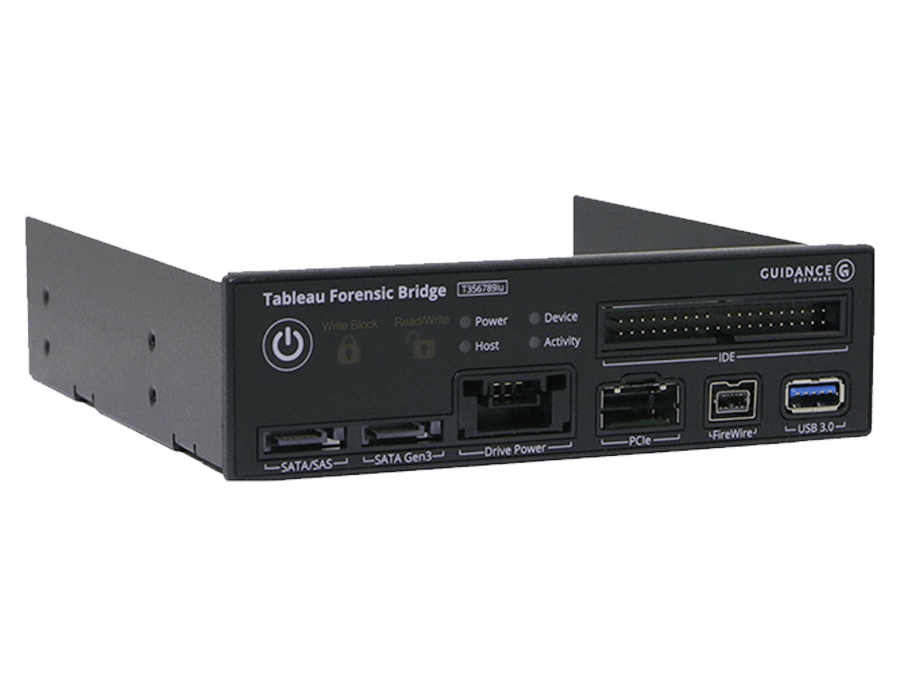

The Tableau Forensic Universal Bridge is an integrated write-blocker that mounts in a drive bay of a forensic workstation and supports forensic acquisitions of SATA, USB 3.0, PCIe, SAS, FireWire 800, and IDE.

A second-generation Tableau product, replacing the Tableau Forensic Combo Bridge [T35689iu].

FEATURES

Mounts in one 5.25” half-height drive bay

Color LED indicators for “Write Block” or “Read/Write” mode visibility

USB 3.0 host computer connection

Two SATA power connectors

Read/write mode capabilities for all device ports via internal DIP switch

Free Tableau firmware updates



NOTE: The Tableau Universal Bridge’s PCIe port must be used in combination with one of the Tableau PCIe Adapters: Tableau PCIe Card SSD Adapter or Tableau PCIe M.2 SSD Adapter

SUMMARY

The Tableau Forensic Universal Bridge is an integrated write-blocker that mounts in a drive bay of a forensic workstation and supports forensic acquisitions of SATA, USB 3.0, PCIe, SAS, FireWire 800, and IDE.

A second-generation Tableau product, replacing the Tableau Forensic Combo Bridge [T35689iu].

FEATURES

Mounts in one 5.25” half-height drive bay

Color LED indicators for “Write Block” or “Read/Write” mode visibility

USB 3.0 host computer connection

Two SATA power connectors

Read/write mode capabilities for all device ports via internal DIP switch

Free Tableau firmware updates



NOTE: The Tableau Universal Bridge’s PCIe port must be used in combination with one of the Tableau PCIe Adapters: Tableau PCIe Card SSD Adapter or Tableau PCIe M.2 SSD Adapter

PRODUCT DESCRIPTION

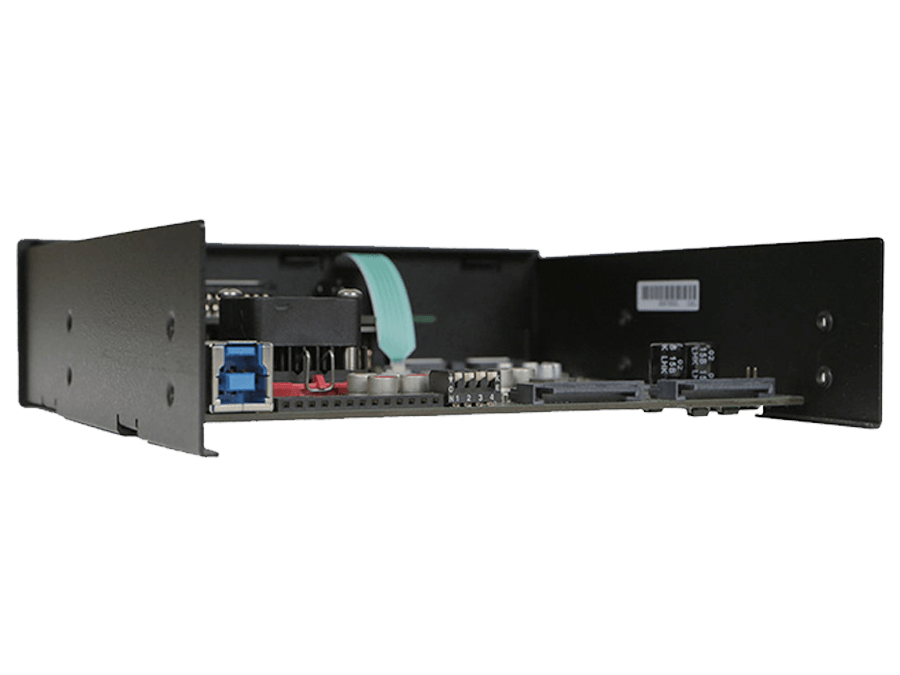

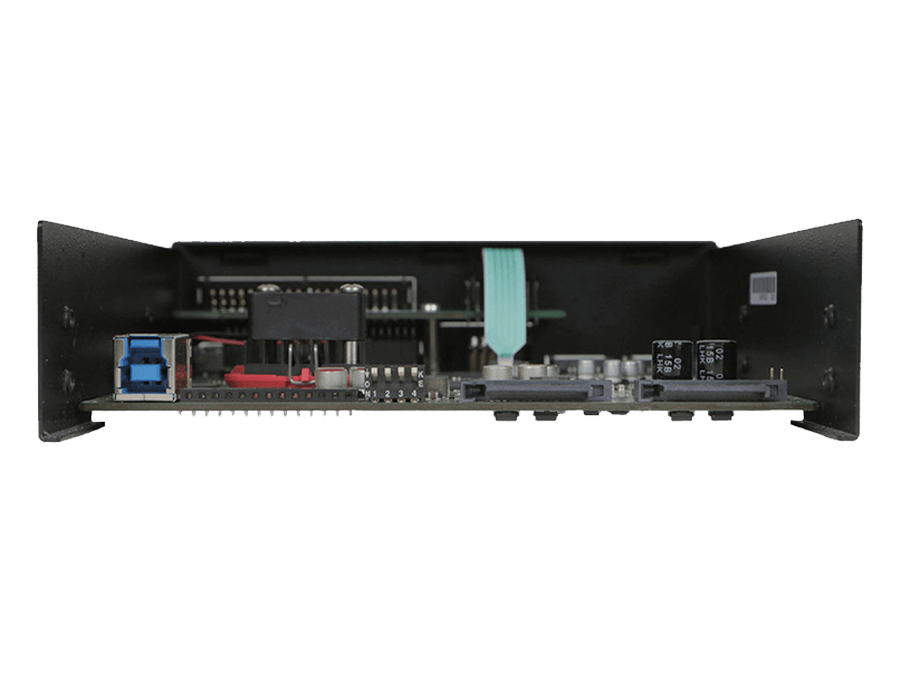

Connectors: Host Side (Rear)
DataOne USB 3.0 Standard-B connector
DC InputTwo SATA 15-pin (male) connectors for input DC power

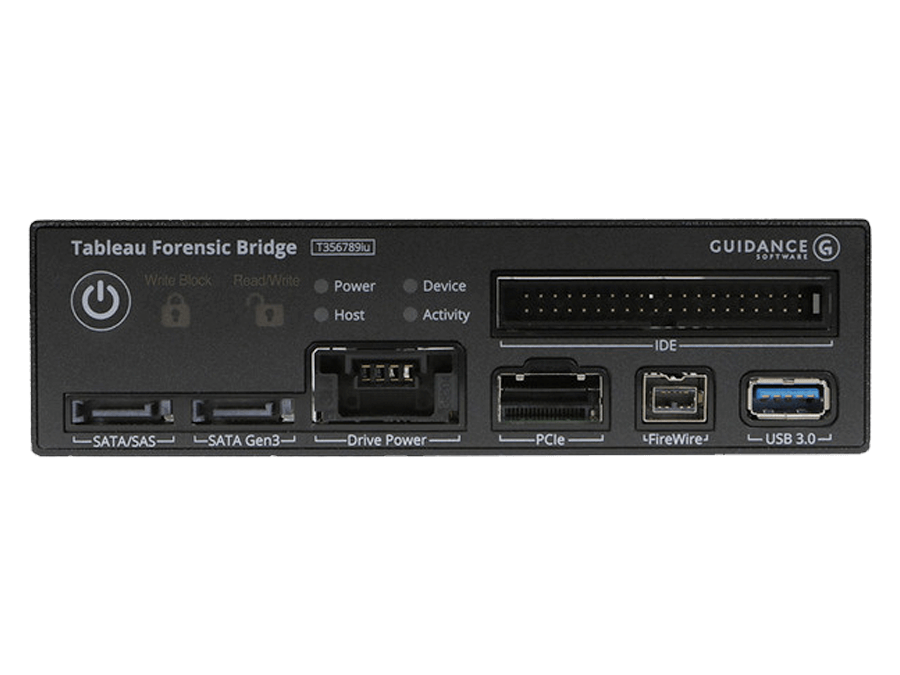

Connectors: Device, Write-Blocked (Front Panel)
PCIeOne PCIe custom data + power connector (for Tableau PCIe cable)
SATA/SASOne SATA/SAS data connector (SAS Gen. 1, SATA Gen. 2)
SATAOne SATA (Gen. 3) data connector
USB 3.0One USB 3.0 Standard-A connector
FireWireOne FireWire800 9-pin connector
IDEOne IDE signal connector
DC OutOne DC Out 3M 4-pin drive power connector (for IDE, SAS, SATA & PCIe)
Switches
DIP SwitchThe 4-position DIP switch (located on the rear of the unit) configures user-selectable options that aren’t required for normal operation. See the Forensic Bridge DIP Switch Configuration Guide for more information
Other Features
Status LEDsSix LEDs: Power, Device (detect), Host (detect), Activity, Write-block (closed lock), Read-Write (open lock)
Host/Computer Interface Compatibility
USB 3.0 ControllersMost USB 3.0 controllers should be compatible (Note: For the best USB 3.0 performance, ensure the latest host controller driver and BIOS update are applied
 Note: This product does not support UASP, but enabling USB 3.0 controller Turbo mode, or equivalent, may still improve performance with certain OS and controller/driver combinations
Host OSWindows 7, 8, 10
 Macintosh OS X
 Most modern Linux distributions (Note: Linux distributions have varying levels and quality of support for USB 3.0)
Physical / Environmental
Power9.5 watts typical operating (not including attached storage devices)
Supply Voltage (DC IN)+5V @ 1.65A (min), +12V @ 0.1A (min)
Output Voltage (DC OUT)+5VDC @ 2A, +12VDC @2A
Relative HumidityUp to 90% (non-condensing)
Operating Temperature Range0 to 55 degrees C (no airflow)
Storage Temperature Range-20 to 60 degrees C
Dimensions5.875 in. (L) x 5.75 in. (W) x 1.625 in. (H)
Weight11.2oz (320g)
