Forensic USB 3.0 Bridge Write Blocker T8u
Price:
$524.00
Please note that there is a potential lead time of at least 2 weeks (14 days) for OpenText items. We appreciate your patience and understanding.

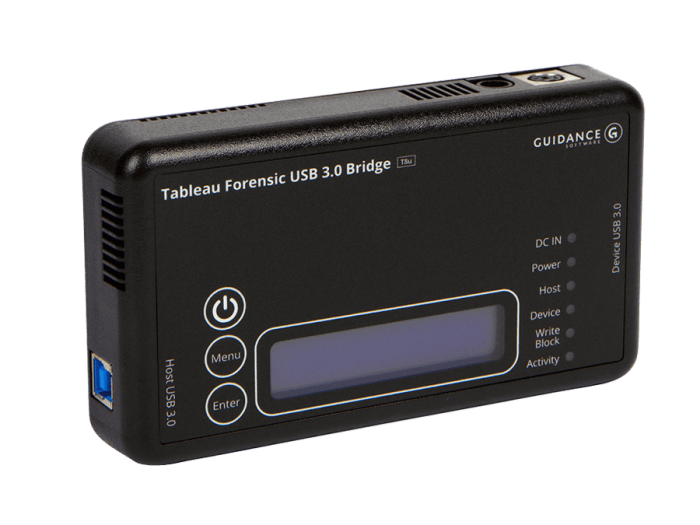

The OpenText Forensic USB 3.0 Bridge is a portable write-blocker that enables forensic acquisition of USB 3.0 devices.
A second-generation OpenText product, replacing the OpenText T8-R2.
FEATURES
- Suitable for both the field and lab
- Imaging speeds up to 340 MB/second
- USB 3.0 host computer connection
- Integrated, backlit LCD presents useful bridge and USB device information
- Six LEDs provide status on power, host connection, USB device detection, write-block status, and activity
- Read/write mode capability via internal DIP switch
- Free OpenText firmware updates.
TK8u kit, which includes :
- OpenText Forensic USB 3.0 Bridge [T8u]
- OpenText Power Supply [TP2]
- OpenText USB 3.0 A to B Cable – 6′ [TC-USB3]
- Zippered Soft-sided Black Nylon Bag [TB1]
- T8u Quick Reference Guide
Product Overview & User Guide
Note
Online Purchases and Pricing are for the US only.
For International Purchases and Support Please Contact Us.
For International Purchases and Support Please Contact Us.
PRODUCT DESCRIPTION
| Connectors: | ||
|---|---|---|
| Host (Left) Side | USB 3.0 | One USB 3.0 Standard-B connector |
| Device (Right) Side | PCIe | One Proprietary PCIe connector |
| Top Side | DC Input | One 5-pin Mini-DIN connector for the OpenText TP2 power supply, and one bayonet connector for the OpenText TP5 power supply. |
| Switches | |
|---|---|
| DIP Switch | The 4-position DIP switch configures user-selectable options that are not required for normal operation. See the T8u Quick Reference Guide for more information |
| User Interface | |
| LCD | 2 Row x 16 Column monochrome LCD character display with LED backlight |
| Buttons | Three buttons: “Menu” and “Enter” buttons for navigation, plus an “On/Off” button to control the power |
| Other Features | |
| Status LEDs | Six LEDs: DC IN, Power, Host (detect), Device (detect), Wrt Block (enabled), Activity |
| Compatibility | |
| USB Device | USB 3.0 and older devices that conform to the USB Mass Storage class specification and support the Bulk Only Interface Protocol |
| Host OS | Microsoft Windows version 7, 8, 10 |
| Macintosh OS X | |
| Most modern Linux distributions (Note: Linux distributions have varying levels and quality of support for USB 3.0) |
| Physical / Environmental | |
|---|---|
| Power | 12 watts typical operating (not including USB device) |
| Supply Voltage (DC IN) | +5V @ 0.3A (max), +12V @ 0.3A (max) when powered using a OpenText TP2 power supply |
| +12V @ 0.45A (max) when using a OpenText TP5 power supply | |
| Output Voltage (DC OUT) | +5VDC @ 0.9A (max) |
| Dimensions | 5.625 in. (L) x 3.25 in. (W) x 1.125 in. (H) |
| Weight | 7.2oz (204g) |
| Operating Temperature Range | 0 to 55 degrees C (no airflow) |
| Storage Temperature Range | -20 to 60 degrees C |
| Relative Humidity | Up to 90% (non-condensing) |
