SuperImager Plus 8″ T4 Portable Forensic Imaging Unit with Thunderbolt and NVME Ports – Dual Open OS

SuperImager Plus 8″ T4 Portable Forensic Featured
SuperImager Plus 8" T4 Portable Forensic Imaging Unit with Thunderbolt and NVME Ports - Dual Open OS - Image 2
SuperImager Plus 8" T4 Portable Forensic Imaging Unit with Thunderbolt and NVME Ports - Dual Open OS - Image 3
SuperImager Plus 8" T4 Portable Forensic Imaging Unit with Thunderbolt and NVME Ports - Dual Open OS - Image 4

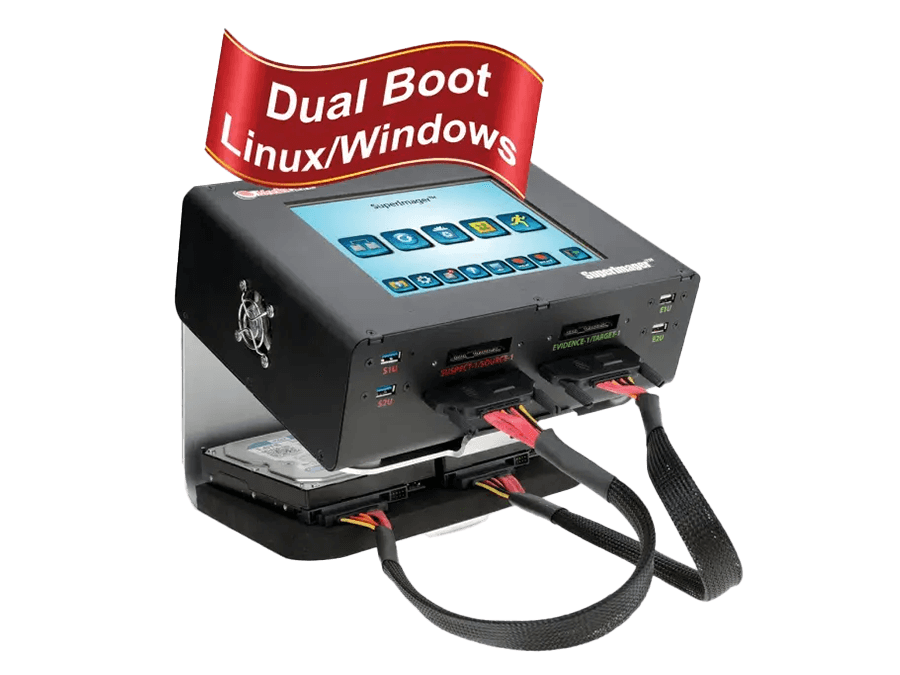

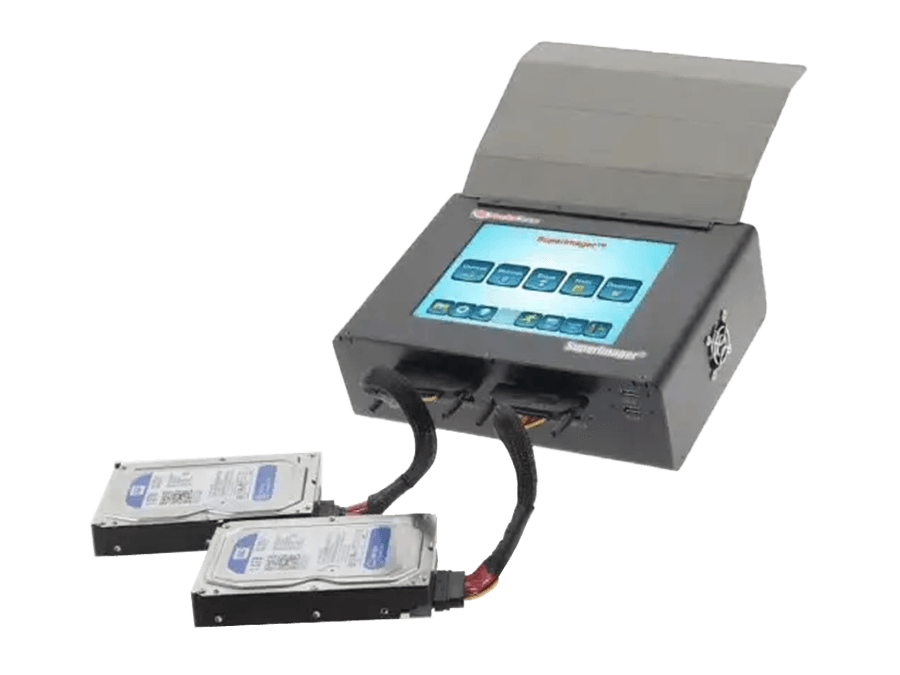

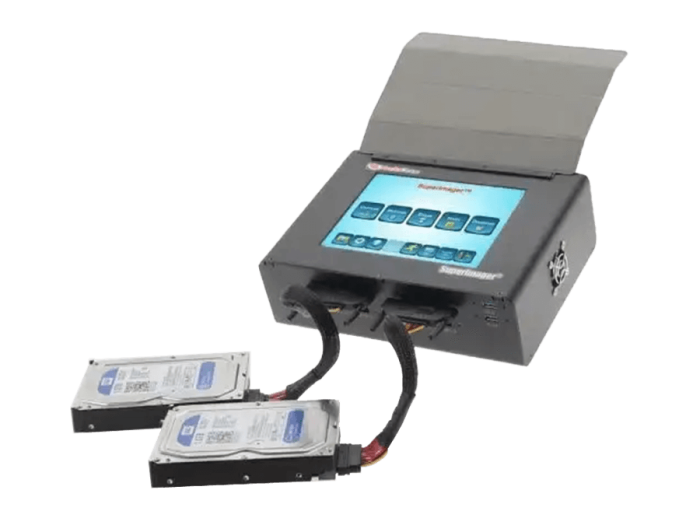

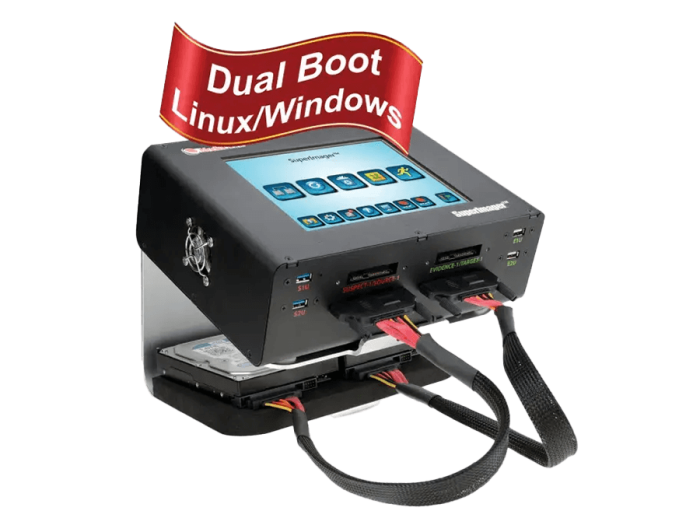

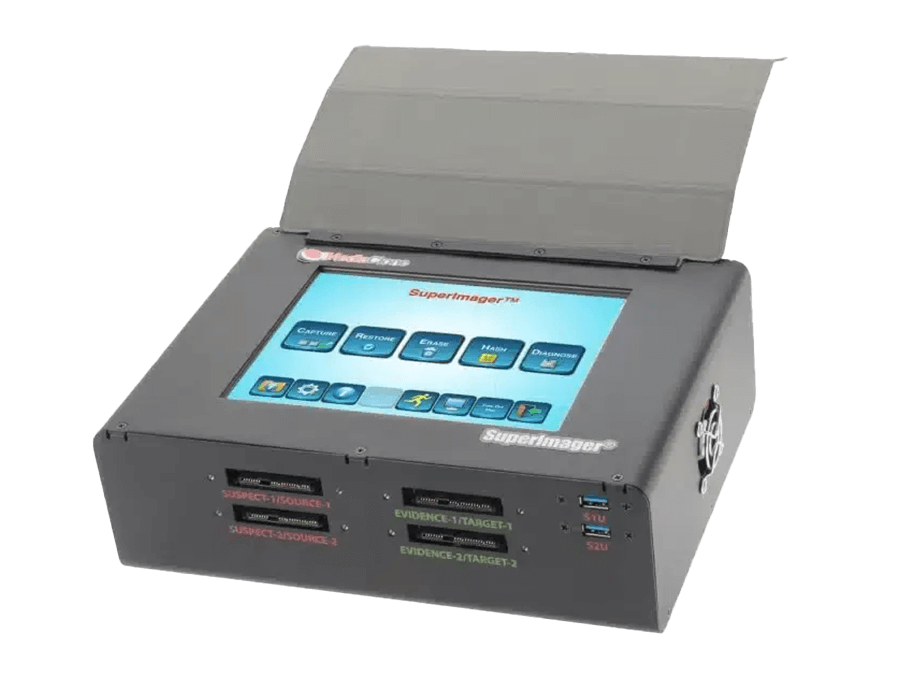

Forensic Imaging Portable Field unit with SAS/SATA, USB 3.2, and Thunderbolt 3.0/USBC ports, running Dual Boot of Linux OS for Forensic data imaging and virtual emulator, and Windows 11 for full forensic analysis, cellphone data extraction and analysis, and triage data collection. The unit is portable, compact, easy to carry, and extremely fast. It is built with 4 SAS/SATA ports, one e-SATA port, 7 ports of USB3.2, two Thunderbolt 4.0 port/USBC, and is supplied with a Thunderbolt 3.0 Expansion box with an U.2 to PCIe M.2 NVMe controller and U.2 to M.2 NVMe adapter to supports capture from NVMe (PCIE, U.2, M.2).

The user can run multiple, parallel, simultaneous forensic imaging operations from many storage devices, with 4 HASH values and with encryption on the fly. In addition, the unit includes a Remote Capture KIT and an Enabled Virtual Emulator option. The units perform with max speed of: 31GB/min with SATA SSD, 165GB/min with NVMe SSD.

Online Purchases and Pricing are for the US only. For International Purchases and Support Please Contact Us. Image represented in photograph is stock; customizations will render each system unique.

PRODUCT DESCRIPTION

SuperImager® Plus 8” T4 Portable Forensic 3 NVMe + 4 SAS/SATA (12Gb/s PCIE 4.0) ports unit is a forensic imaging device with the ability to perform in the field multiple Forensic tasks, allowing the Forensic investigator to simultaneously capture data from various source drives to multiple targets drives with 4 HASH values(MD5, SHA1, SHA2, SHA512 at the same time), image verification at extreme fast speed. It also enables the user to perform a full Forensic Analysis in the field by using EnCase, Nuix, Axiom, or any other analysis application for Windows 11, and perform data extraction and analysis from multiple cellphones. The unit is compact and easy to carry, with built-in 4 SAS/SATA ports (with a secure connector), two e-SATA port, 9 USB3.2 ports(6 Gen2, 2 Gen1,1 Gen2x2), two Thunderbolt 4.0/USBc ports (40 Gigabit/s for 2 NVMe), and it is supplied with a Thunderbolt 3.0 Expansion box with 1394A/B controller, NVMe U.2/M.2 solution. Additionally, the Thunderbolt 4.0 ports and the Thunderbolt 3.0 Expansion box allow the user to capture data from Mac (using the optional Mac Acquisition Kit supports for Mac with T1/T2 and M1/M2), save captured images to a network via 10Gigabit/s Ethernet, or capture data from legacy drives such as SCSI, FC. The unit is supplied with TB4.0 to NVMe fast adapters provides the unit with the second and third NVMe ports. The unit performs with an extreme speed of 31GB/min with imaging SATA to SATA SSD, 165GB/min with mirror imaging NVMe SSD, 51.2GB/min mirror imaging SATA to external NVMe, 47.6GB/min Ex01 Imaging with full compression SATA to SATA SSD.

As a platform, the unit can be used to perform:
  • Cellphone Data Extraction
  • Triage Data Collection
  • Full Forensic Analysis
  • The unit includes:

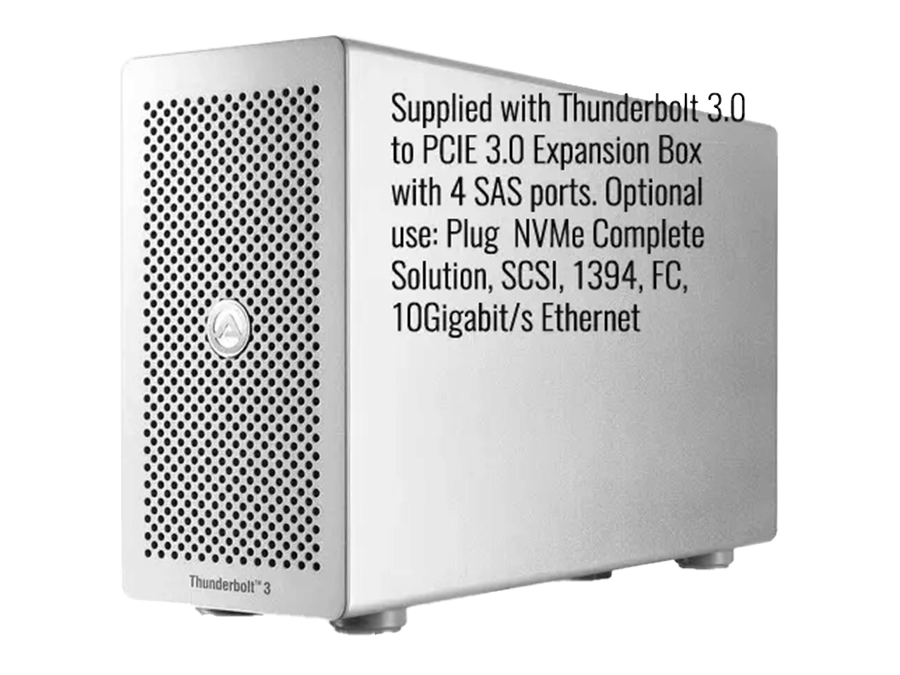

  • Thunderbolt 3.0 to PCIe Expansion Box
  • U.2 to PCIe NVMe controller and U.2 to M.2 NVMe adapter
  • TB4.0 to NVMe adapter
  • 1394 A/B controller
  • Remote Capture KIT (Intel, Mac)
  • Virtual Drive Emulator feature
